Key Vault parameters in Dynamics 365 F&O

1. What Is the Key Vault Parameters Form (and Why It Matters)?

Dynamics 365 F&O implementations often call external services—payment gateways, tax engines, storage accounts—and all of them need credentials or tokens. Hardcoding those values in X++ or config files is a security risk. Azure Key Vault is Microsoft’s secure secrets storage, and the Key Vault parameters form in D365 F&O is your bridge to fetch those secrets safely at runtime.

Benefits of using the Key Vault parameters form:

• Centralized secret management system.
• Least-privilege access via Azure AD (Microsoft Entra ID) and Key Vault access controls (Access Policies or RBAC).
• No credentials need to be hardcoded in X++, batch jobs, or data integrations.


2. Architecture Flow

1. Azure Key Vault holds one or more secrets
2. Azure AD App Registration provides client ID/secret
3. D365 F&O stores the key vault URL and the client id and secret in the Key Vault parameters form.
4. Runtime flow: D365 authenticates to Azure AD → requests the secret from azure key vault → returns it to your code/config using D365 classes.

3. Prerequisites Checklist

• Azure subscription with rights to create or manage Key Vault.
• Rights to register an application in Azure AD / Microsoft EntraID.
• D365 FO with systemadmin role to configure the Key Vault parameters form.
• Optional : A service account that will consume the secrets via batch job, X++ class.


4. Step-by-Step: Create the Azure Key Vault

1. Go to Azure → Create a resource → Key Vault.
2. Basics
   • Subscription & Resource group: Choose a subscription and resource group.
   • Name: Name should be unique.
   • Region: align with your D365 region if possible.
   • Pricing tier: Standard should be fine.
3. Access configuration
   • Access policy (classic): Add policies later.
   • RBAC (recommended): Role-based access.
4. Review + Create → Deploy. This will create the Key vault.

Add Secrets to the Vault

• Vault → Objects → Secrets → + Generate/Import.
• Secret name: It should be a clean and logical (e.g., ConnectionString, etc).
• Secret value: Paste the actual key in the value field.
• Set expiration and reminders for rotation (This is optional and should be used for best security)


5. Step-by-Step: Register an App in Azure AD

1. Azure Portal → Microsoft Entra ID → App registrations → New registration.
2. Name: D365-FNO-KeyVault-Reader-UAT (or similar).
3. Supported account types: “Accounts in this organizational directory only” (typical).
4. Redirect URI: Not required for client secret flows; skip.
5. Register → Copy the Application/Client ID and Tenant ID.
6. Certificates & secrets → New client secret → Add description & expiry → Copy the secret value as it will vanish after you close the browser.

Tip: Securely store this client secret. D365 F&O mostly uses the client ID/secret pattern to call Azure key vault.

6. Grant the App Access to the Key Vault

Your App Registration needs Get and List permissions on secrets.

Option A: If you choose Access Policies (Classic)

• Vault → Access policies → + Create (or Add Access Policy).
• Secret permissions: Get, List.
• Principal: Select your App Registration.
• Save.

Option B: If you choose RBAC (Recommended)

• Vault → Access control (IAM) → Add role assignment.
• Role: Key Vault Secrets User (allows get/list).
• Assign to: Your App Registration.
• Save.

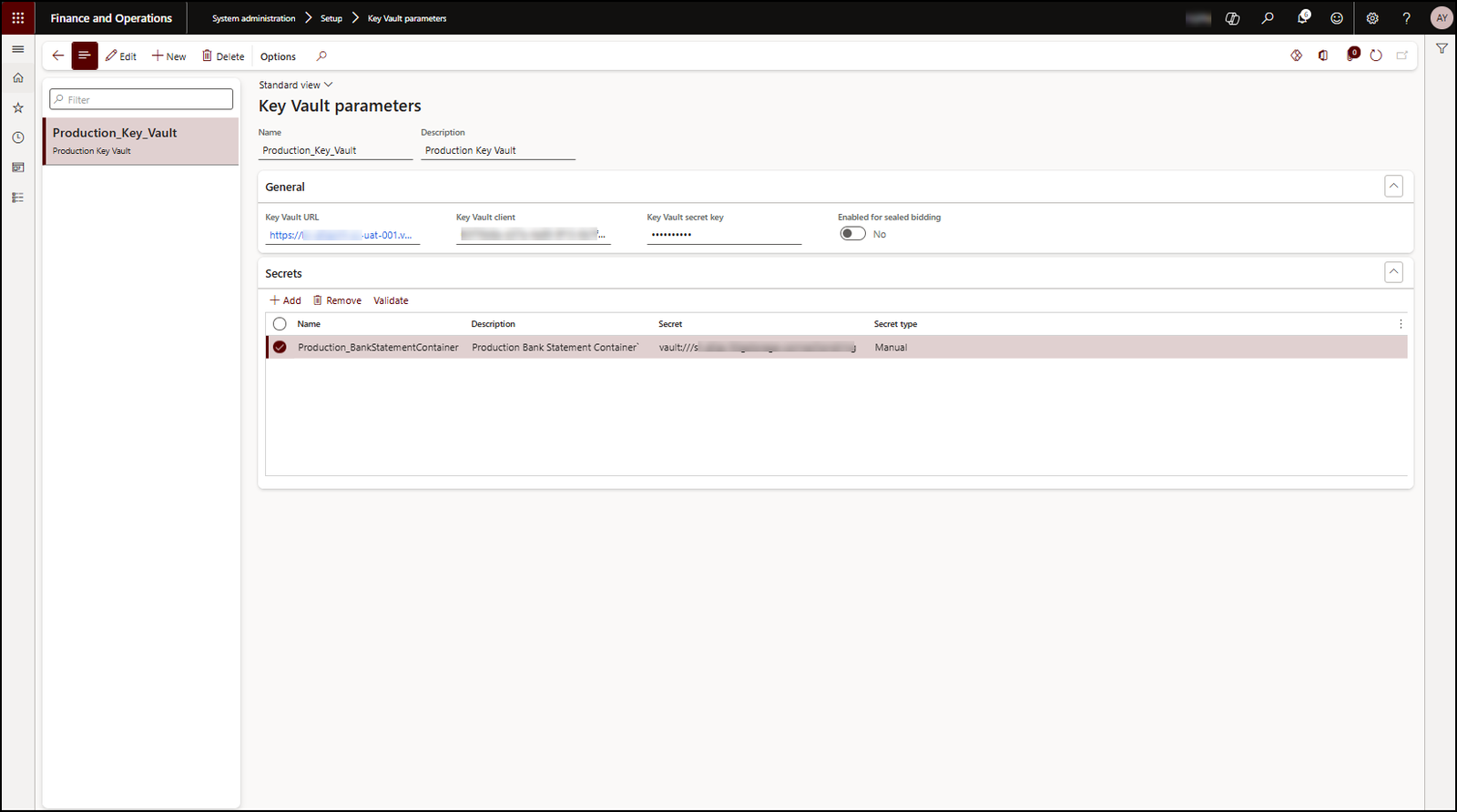

7. Configuring the Key Vault Parameters Form in D365 FO

Path: System administration → Setup → Key Vault parameters

Fields:

• Key Vault URL: This should be something like this → https://<your-vault-name>.vault.azure.net/
• Client ID: Application/Client ID from the App Registration.
• Client Secret: In the secret grid, value we generated earlier(Attached screenshot for reference).

Security note: Access to this form should be restricted only to a small admin group should be able to view or edit it.

8. Consuming the Secret in X++ (Code Example)

Once the parameters are set, code anywhere in D365 can fetch secrets.

///
/// Fetch a secret from Azure Key Vault through D365’s KeyVaultConfiguration class
///
public static str getSecretValue(str _secretName)
{
    KeyVaultCertificateTable    KeyVaultCertificateTableLocal;
    str secretValue;

    secretValue = KeyVaultCertificateHelper::getManualSecretValue(KeyVaultCertificateTable::findByName('KeyVaultSecretKeyName').RecId)

        return secretValue;
}

9. Final Words

The Key Vault parameters form is your one-time, secure setup to standardize secret retrieval in D365 F&O. After configuring it:

• Add secrets for every external service you use.
• Refactor existing scripts and classes to use KeyVaultCertificateHelper instead of hardcoded credentials.

Happy (and secure) integrating!
